CENTAFLEX 22AS Size 22 Coupling
Available for international sourcing and export from India.
Pioneer Mitra Engineering Company quotes the photographed CENTAFLEX rubber coupling stamped Size 22, described as 22AS. Four metal inserts, CENTRAL ANTIHOLE and MINI PULLER on the face. We are an independent exporter — not a CENTA / Reich authorised dealer.
Stamped Size 22. Quoted as 22AS. Send a photo of your old coupling if the hole style differs. WhatsApp +91 96720 55759. No public price.
Product details (from the photographed unit)
| Brand | CENTAFLEX (stamped) |
|---|---|
| Size | 22 — stamped CENTAFLEX Size 22 |
| Enquiry / trade name | 22AS coupling (buyer description; Type 0-S in many CENTAFLEX-A lists) |
| Product type | Flexible rubber coupling element (element only in photos) |
| Face marks | MINI PULLER · CENTRAL ANTIHOLE |
| Patents (stamp) | JPN PAT. 778322 · US PAT. 3683643 · DBP 2019608 · BR PAT. 7207370 |
| Bolt / insert count (photo) | Four |
| Catalogue family (not fully stamped) | CENTAFLEX-A Size 22 — codes such as CF-A-022-0-S appear in distributor lists |
| Shore hardness | Not stamped — to be confirmed (listings often 50 or 60) |
| Not in photos | Hubs, bolts, flywheel adapter — not assumed in the quote pack |
| Not this size | Size 16 or Size 28 CENTAFLEX-A elements |
| 22A vs 22AS | 22A is commonly Type 0 (bolt). 22AS is commonly Type 0-S. Match the removed element. |
| Genuine / authorised | Not claimed — patent stamps also appear on aftermarket copies |
| Availability | Request a quote — no InStock claim |
| Price | On enquiry |
| Supply | India desk · international RFQ |
Overview

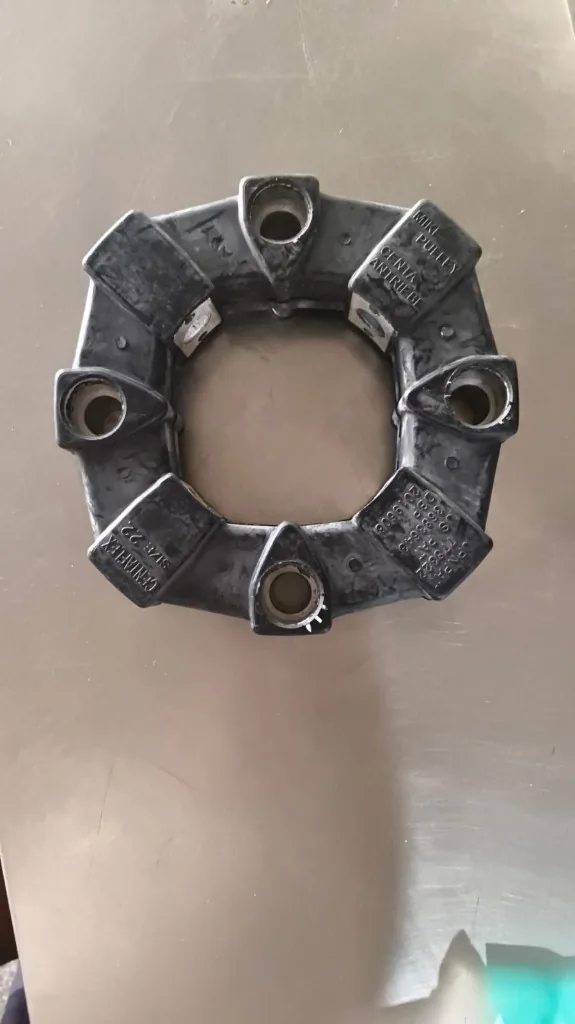

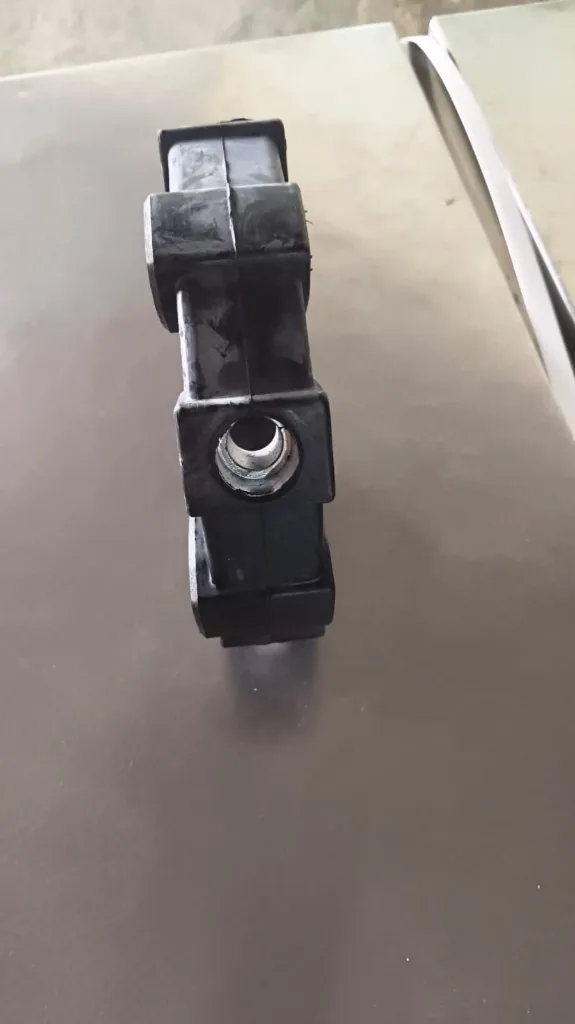

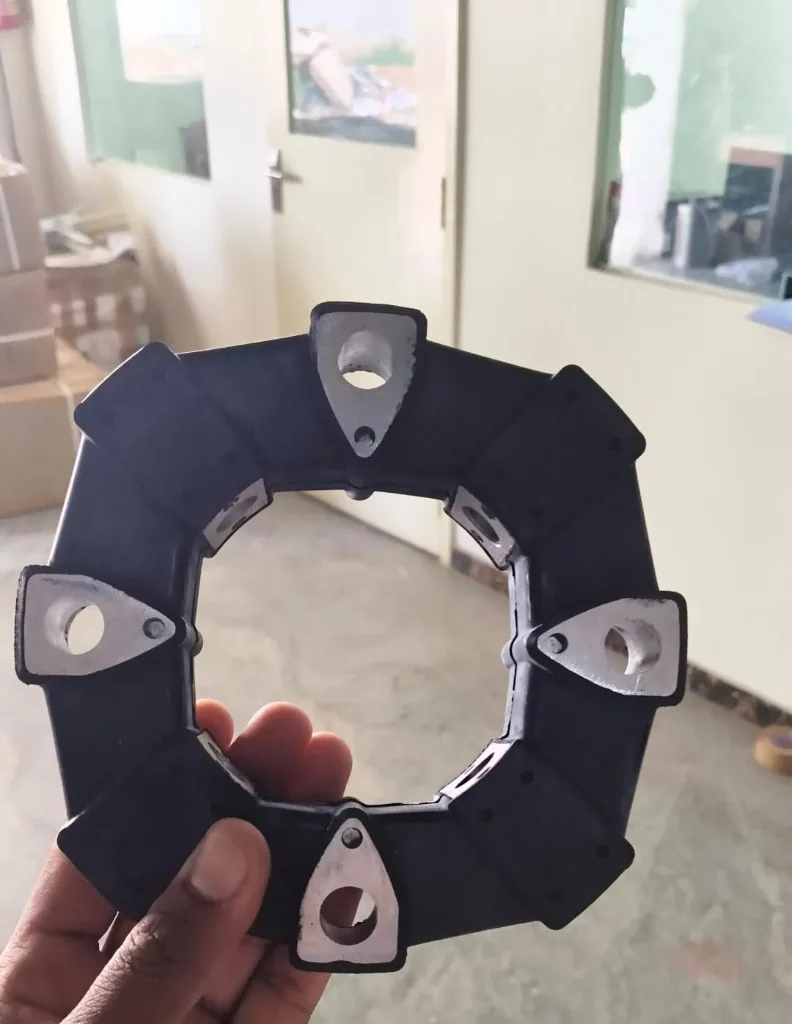

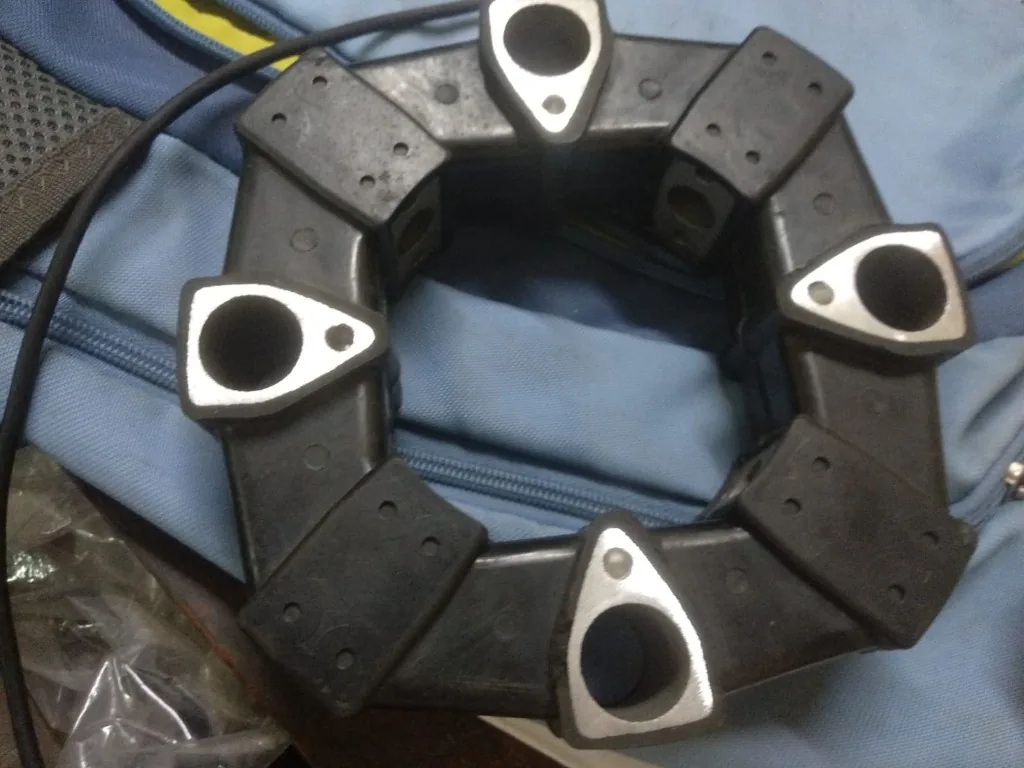

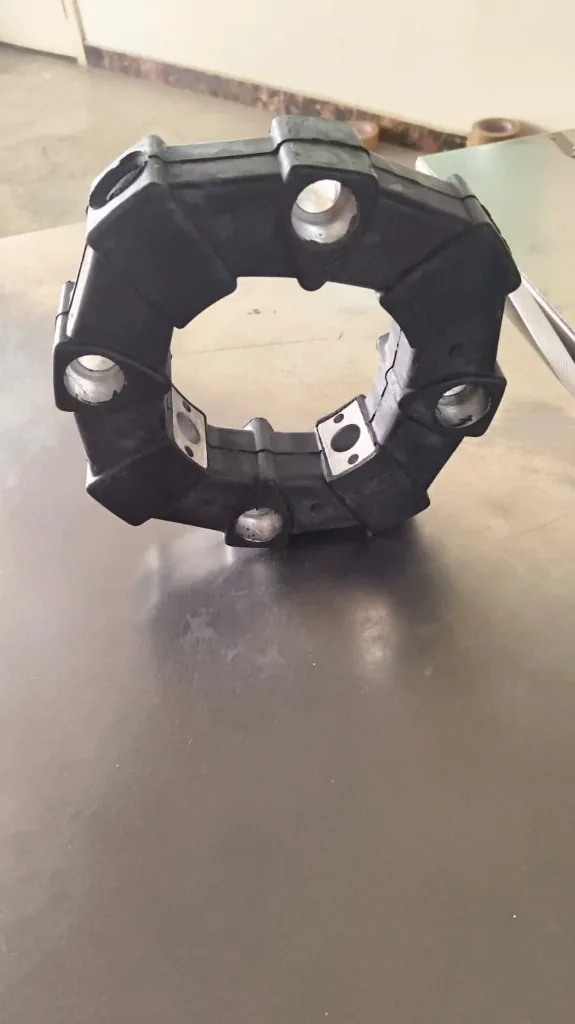

These warehouse photographs show a CENTAFLEX rubber coupling element stamped Size 22, with four metal inserts at 90°. The buyer description for this RFQ is 22AS coupling. In CENTAFLEX-A trade language, 22AS usually means Size 22, Type 0-S (pin / anti-hole style). The stamp also reads CENTRAL ANTIHOLE and MINI PULLER.
This page quotes the rubber element in the photos — hubs, bolts and flywheel adapters are not in the pictures and are not assumed in the pack.
How to use 22AS in an RFQ
Send CENTAFLEX Size 22 / 22AS, quantity and destination. A photo of the removed element (both faces) and the pump/engine flange is better than a machine-model guess. If your element is Size 16 or Size 28, or has three holes not four, that is a different CENTAFLEX size — do not order from this page.
Identification assistance
Readable on the photographed element:
- CENTAFLEX Size 22
- MINI PULLER
- CENTRAL ANTIHOLE
- JPN PAT. 778322 · US PAT. 3683643 · DBP 2019608 · BR PAT. 7207370
- Four bolt/insert holes around the ring
22AS is the enquiry name, not a second stamp line. Catalogue codes such as CF-A-022-0-S are CENTAFLEX-A Size 22 Type 0-S references used by distributors — they are not printed in full on this rubber.
Compatibility verification
CENTAFLEX-A Size 22 elements are used on many engine-to-pump and industrial drives. We do not list excavator or pump models here. Size 16 (three holes on some 0-S rings) and Size 28 look similar in photos — count holes and read the stamp.
Shore hardness (often 50 or 60 in listings) is not stamped on these photos. Type 0 (22A, bolt) versus Type 0-S (22AS, pin/anti-hole) must match your hubs. Confirm against the removed coupling before we accept an order.
CENTAFLEX-A catalogue note — not Pioneer Mitra measurements
Public CENTAFLEX-A dimension tables for Size 22 Type 0 / 0-S commonly list four holes at 90° and an outer diameter around 150 mm. We have not measured this warehouse piece. Those figures are manufacturer catalogue context only — send your old coupling if you need a dimensional check.
International supply & export
Pioneer Mitra Engineering Company, New Delhi, sources construction, industrial and commercial-vehicle parts for export RFQ.
- Part-number check against these photos
- Availability confirmation before payment
- Pre-dispatch photographs of the unit quoted
- Export packing for the quoted freight mode
- Commercial invoice and packing list
- Air, courier or sea quoted per destination
- GST invoice for Indian buyers (GSTIN 07BJDPB6241D1ZS)
Transit days are quoted per shipment — not a blanket delivery promise.
Destination desks
Country pages below are existing logistics desks, not thin clones of this SKU.
Warehouse photographs
Request export quote
Country is required. After submit we check availability and contact you.
Frequently asked questions
Related
CENTAFLEX and Size 22 identify the stamp on these photographs. 22AS is the enquiry name. Pioneer Mitra is not affiliated with CENTA / Reich. Patent numbers are as stamped and are not a genuine-OEM proof. No Offer, InStock, Shore rating, torque or measured OD is claimed.
