Loader Instrument Panel Cover — Identify by Photo
Twin gauge cutouts · black PP loader dashboard cover — send WhatsApp photo for part identification and export quote. OEM part number 332/G3858 for identification only when confirmed.
Request Instant Global RFQ
Photo identification & export quotes · FOB New Delhi · export@pioneermitra.com · indicative pricing on confirmed RFQ only
How to Identify Your JCB Loader Cover Without Part Number
You removed a broken cover from a JCB loader cab and typed JCB plastic loader cover black or JCB dashboard cover two holes into Google — but every result shows a different part number, wrong photos, or stone guards that are not your commodity. This page is built for that buyer: you know what the part looks like, not what number it carries.
Pioneer Mitra matches loader covers the same way we identify MCS pressure gauges by dial photo — warehouse images, visual checklist, WhatsApp confirmation, then quote. No catalogue number required to start.
Visual Match Checklist — Twin Gauge Loader Cover
- Twin circular gauge cutouts: Two stacked round openings in a recessed instrument well — top opening slightly smaller than bottom. Approximate 4.5 inch diameter cutout (see ruler photo in gallery)
- Black PP plastic housing: Matte black moulded polypropylene — not metal, not rubber, not a stone guard plate
- Instrument panel recess: Deep curved recess on the left side; flatter vertical panel on the right
- Three mounting holes on base flange: Circular bolt holes at corners — top-left, bottom-left, bottom-right
- Metal clips around gauge rims: Retaining clip positions around each circular gauge opening edge
- Cab position clue: Dashboard instrument area on JCB 3DX, 4DX and loader platforms — houses RPM, temperature and hydraulic pressure gauges
Tick every box against your removed unit and our warehouse gallery below. When the shape matches, the cross-reference part number is 332/G3858 Cover Loader — but you do not need to know that number to send your first WhatsApp photo.
Visual Gallery — Warehouse Reference Photos
Compare your removed cover against these four warehouse angles. Click thumbnails in the hero gallery above or study the grid below. Send your own photos on WhatsApp if any angle is unclear.

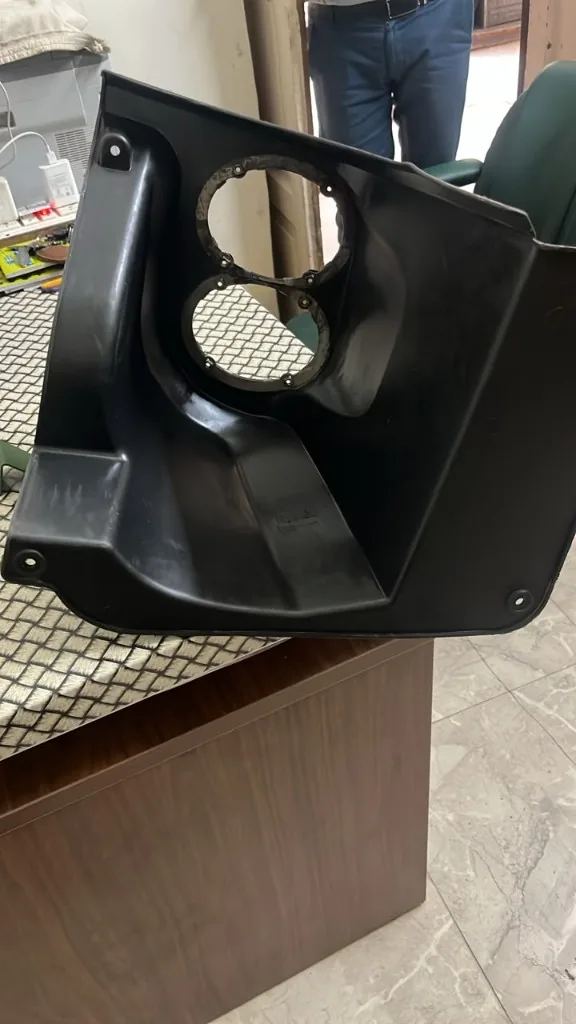

JCB loader cover twin gauge instrument panel — black PP housing two circular gauge cutouts identify by photo

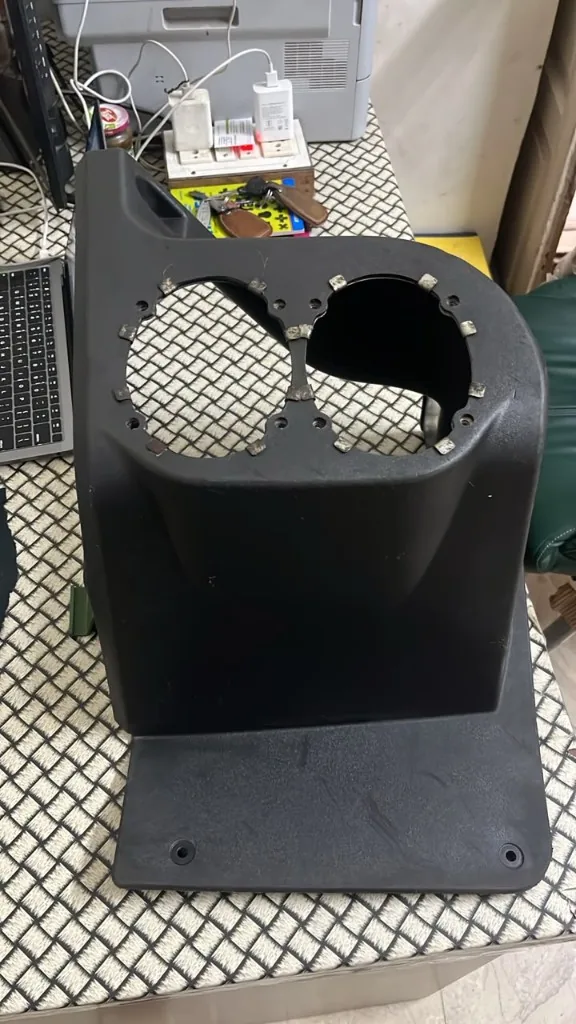

JCB dashboard cover two holes — twin circular gauge openings black plastic loader cover top view

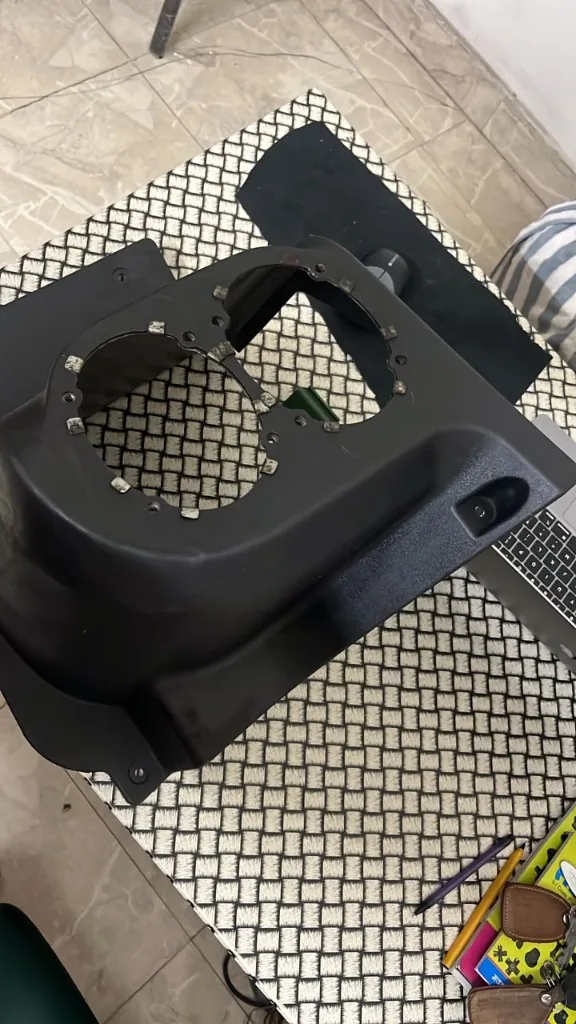

JCB plastic loader cover black — instrument panel housing side angle PP moulding identify without part number

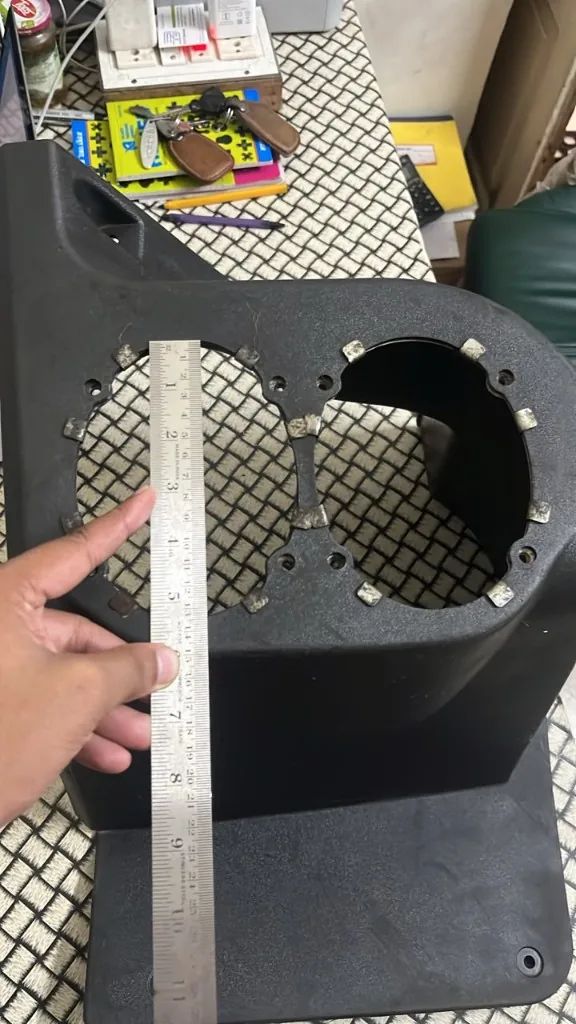

JCB instrument panel cover gauge opening — ruler showing approx 4.5 inch circular cutout twin gauge loader cover
Common Wrong Google Results — 332/E0833 Stone Guard & 332/Y6438
Directory scrapers and parts aggregators frequently mix unrelated JCB 332-series numbers. Buyers searching JCB instrument panel cover or JCB 3DX loader cover land on listings for stone guards, random 332 parts, or cross-listed numbers that do not match the twin-gauge plastic housing in their hand.
| Part Number | What Google Often Shows | Your Part If… |
|---|---|---|
| 332/E0833 | Stone guard / debris shield listings | NOT your part — undercarriage protection, no gauge cutouts |
| 332/Y6438 | Aggregator cross-list with other 332 parts | Verify shape — may differ from twin-gauge cover loader |
| Random 332/Gxxxx | Mixed titles from directory scrapers | Match twin gauge cutout layout, not title alone |
| 332/G3858 | Sometimes shown with wrong commodity photo | Cover Loader — twin gauge PP panel housing |
Why Ordering From Directory Title Alone Fails
Procurement teams that copy part numbers from aggregator pages without photo verification risk receiving a stone guard, a different 332-series moulding, or a cover with wrong gauge opening spacing. Indian rental yards and African mine-support workshops lose days on wrong-SKU returns. Match the twin circular gauge cutout shape and black PP moulding against our photos. WhatsApp your image before RFQ — we match stock to your photo, not directory metadata.
When Your Cover Matches — Part Number 332/G3858
Confirmed Visual Match → JCB 332/G3858 Cover Loader
If your removed unit matches every item on the visual checklist — twin stacked gauge cutouts, black PP housing, three corner mount holes, metal rim clips — the JCB catalogue cross-reference is 332/G3858 Cover Loader. Pioneer Mitra stocks aftermarket compatible units for export with warehouse fitment verification before dispatch.
Our full part-number product page has additional specification table, machine application cards, warehouse video and export corridor details for buyers who already know the number or have confirmed the match on this page.
View JCB 332/G3858 Cover Loader Product Page →The part-number page (Path A) and this visual guide (Path B) are two entry points to the same warehouse stock. Path A serves buyers who search 332/G3858 directly. Path B serves buyers who search identify JCB loader part by photo or JCB loader cover twin gauge without knowing the catalogue number. Both paths end at the same export desk — WhatsApp photo confirmation, then rate on confirmed RFQ.
Visual Comparison Checklist Table
| Feature | Your Cover (Check) | Warehouse Reference (332/G3858) |
|---|---|---|
| Material | Matte black moulded plastic | Black PP polypropylene housing |
| Gauge openings | Two stacked circular cutouts | Twin gauge cutouts — top smaller, bottom larger |
| Gauge opening size | Approx 4.5 inch diameter | ~4.5 inch circular cutout (ruler photo) |
| Left side profile | Deep curved instrument recess | Recessed instrument well curves inward |
| Mounting | Three corner bolt holes on flange | 3 mounting holes — top-left, bottom-left, bottom-right |
| Gauge retention | Metal clips at rim edges | Metal clips around gauge opening rims |
| Application area | Cab dashboard / instrument panel | JCB 3DX, 4DX loader cab instrument area |
| NOT this part if… | Metal plate, no gauge holes, undercarriage mount | See 332/E0833 stone guard — different commodity |
Send Photo — We Identify & Quote
Primary CTA — WhatsApp Photo Identification
No part number? No problem. Send three photos on WhatsApp: front face showing both gauge holes, side profile showing recess depth, and base flange with mounting holes. Include machine model (3DX, 4DX, loader variant), destination country and quantity.
- WhatsApp: +91 96720 55759
- Email: export@pioneermitra.com
- IEC: BJDPB6241D — FOB New Delhi export
Rate on WhatsApp — export & bulk quotes. Indicative pricing on confirmed RFQ/proforma only after warehouse fitment check. Pioneer Mitra does not publish list prices — margin protection on fleet orders.
JCB 3DX Loader Cover & Construction Fleet Applications
The twin-gauge loader cover is a consumable-style plastic instrument housing on JCB earthmoving equipment. Workshop teams replace it after impact damage, UV embrittlement, broken mounting tabs or cab refurbishment. Many technicians know the machine is a JCB 3DX loader before they know the part number — this page bridges that gap.
Indian rental yards, African construction fleets and Gulf mine-support workshops run mixed JCB populations where cab panels see hard duty. Sun exposure cracks PP mouldings; vibration loosens gauge clips; operators snag covers on cab entry. Consolidated FOB quotes for multiple covers reduce per-unit air freight. Sea cargo suits planned fleet refreshes; air freight suits breakdown urgency when a machine is down waiting for a dashboard panel.
If your search was JCB cover loader without part number, you are in the right place. Compare photos, send WhatsApp images, confirm the match, then request export quote. Independent supplier — not a JCB dealer or authorised distributor. Brand name JCB used for cross-reference only.
Export Corridors — Africa, Gulf & Mauritius
Pioneer Mitra supplies JCB-compatible loader covers to construction, mining and rental fleets from New Delhi. Marking and shape verification before dispatch — we do not ship on part-number guesswork when directory data is unreliable.
Africa: Nigeria, Ghana, Zambia, Kenya — 3DX and 4DX fleets on rental yards and mine support.
Gulf: UAE and Saudi Arabia — Jebel Ali and Dammam corridors for construction equipment parts.
Mauritius: Construction equipment parts supplier →
