Quick Summary: Vivoil X1P2342FBBA is a 3.12 cc/rev Italian-made Group 1 unidirectional hydraulic gear pump (Series XV, Ø32 BH/D flange, 3/8 BSPP ports, right rotation). Max working pressure 250 bar (P1), peak 300 bar (P3). Weight 1.090 kg. Used in compact pilot, charge, and auxiliary hydraulic circuits on road rollers, compactors, agricultural and industrial machinery.
🇮🇹 Made in Italy — Vivoil Oleodinamica Vivolo, Budrio (BO)
In Stock — Delhi Warehouse — Ready to Dispatch
Part No: X1P2342FBBA 0 | Batch: 2719 | Mfg: Nov 2025
Vivoil X1P2342FBBA Hydraulic Gear Pump
Series XV • Group 1 • 3.12 cc/rev • P1 250 bar • Ø32 BH/D • 3/8 BSPP
Applications: Pilot circuits, charge pumps, and auxiliary hydraulic systems on road rollers, compactors, agricultural machinery, and industrial equipment requiring compact Italian Group 1 gear pumps.
Market price available on request • Bulk OEM pricing on enquiry
GET FOB PRICE IN 15 MIN →
⚠️ Limited imported stock. Batch Nov 2025 currently available from our Delhi inventory. Next import cycle depends on Italy production schedule.
🇮🇹 Vivoil Italy — Datasheet Verified
📦 Batch Nov 2025
🏭 Delhi Local Inventory
🌍 Export 30+ Countries
📹 Pre-Dispatch Video
Independent Supplier: Pioneer Mitra Engineering Company is an independent supplier — not an authorised Vivoil dealer. All brand names and part numbers used for identification only. Vivoil® is a trademark of Vivoil Oleodinamica Vivolo s.r.l., Budrio, Italy.
📍 Physical Stock Verification — Pioneer Mitra, Delhi
This unit has been physically received, inspected, and documented by Pioneer Mitra Engineering Company at our Delhi warehouse. All photos and the video on this page show the actual unit in stock — not catalogue images. Part number, Vivoil Italy label, Batch 2719, and manufacture date November 2025 are verified on the physical unit.
Technical Specifications — Datasheet Confirmed
3.12cc/rev Displacement
250bar P1 Max Working
300bar P3 Peak Pressure
1.090kg Weight
85.5mm Length (Dim A)
13.8Nm Shaft Torque (T.2)
| Part Number | X1P2342FBBA 0 |
| Brand / Manufacturer | Vivoil Oleodinamica Vivolo s.r.l., Budrio (BO), Italy |
| Series / Group | XV — Group 1 |
| Pump Category | Unidirectional External Gear Pump |
| Displacement | 3.12 cc/rev (XV-1P/3.2) |
| Max Working Pressure (P1) | 250 bar — datasheet confirmed |
| Max Peak Pressure (P3) | 300 bar — datasheet confirmed |
| Rotation | Right rotation (code suffix 42) |
| Flange | Ø32 BH/D — body-shaped flange |
| Shaft | CF002 — Milled shank, Ø10 mm, thickness 5 mm |
| Port IN | 3/8" BSPP |
| Port OUT | 3/8" BSPP |
| Cover | A — Standard |
| Body (Port config) | B-B (3/8 BSP IN — 3/8 BSP OUT) |
| Weight | 1.090 kg |
| Dimension A (length) | 85.5 mm |
| Dimension B | 40.5 mm |
| Dimension C | 73.5 mm |
| Shaft Torque (T.2) | 13.8 Nm admissible |
| Screw Torque (T.1) | 24.5–29.4 Nm (M8) |
| Body Material | Aluminium alloy |
| Patents | 3 international patents — Vivoil XV series |
| Manufacture Date | 20 / 11 / 2025 — Batch 2719 |
| Country of Origin | Italy (vivoil.com certified) |
| Stock Location | Delhi, India — Pioneer Mitra local inventory |
📄
Vivoil XV-1P Official Technical Datasheet (XP119)
Contact Pioneer Mitra to receive the official Vivoil technical datasheet PDF for this series. Includes full dimensional drawings, pressure-flow curves, and shaft torque tables.
Live Stock Video — Delhi Warehouse
📋 Video Inspection Summary
This video shows the actual Vivoil X1P2342FBBA hydraulic gear pump stocked at Pioneer Mitra's Delhi warehouse. The inspection covers:

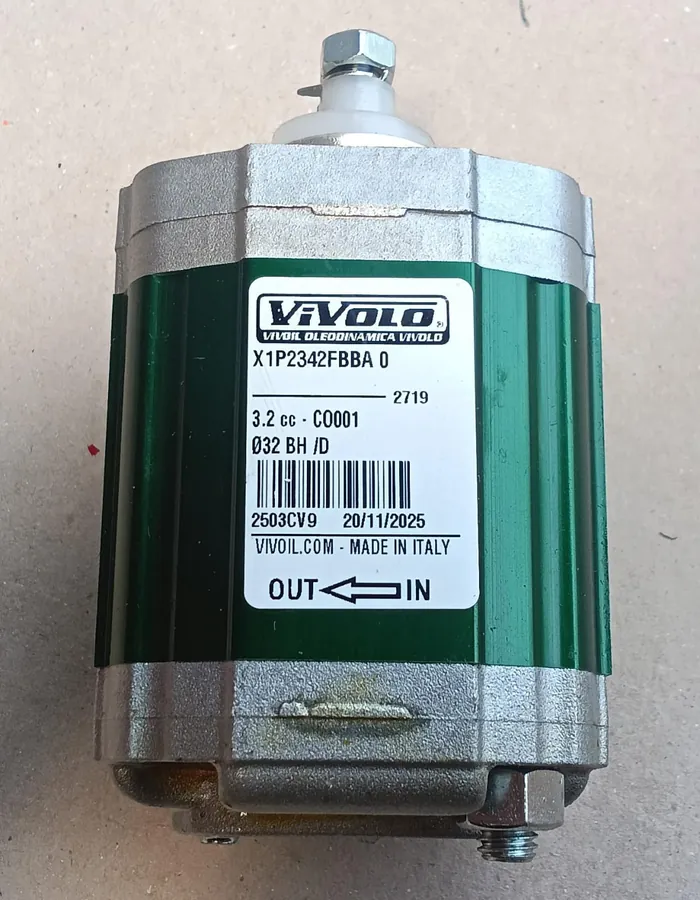

- Original Vivoil label — part number X1P2342FBBA 0 clearly visible
- Batch number 2719 and manufacture date November 2025 confirmation
- "VIVOIL.COM — MADE IN ITALY" certification marking

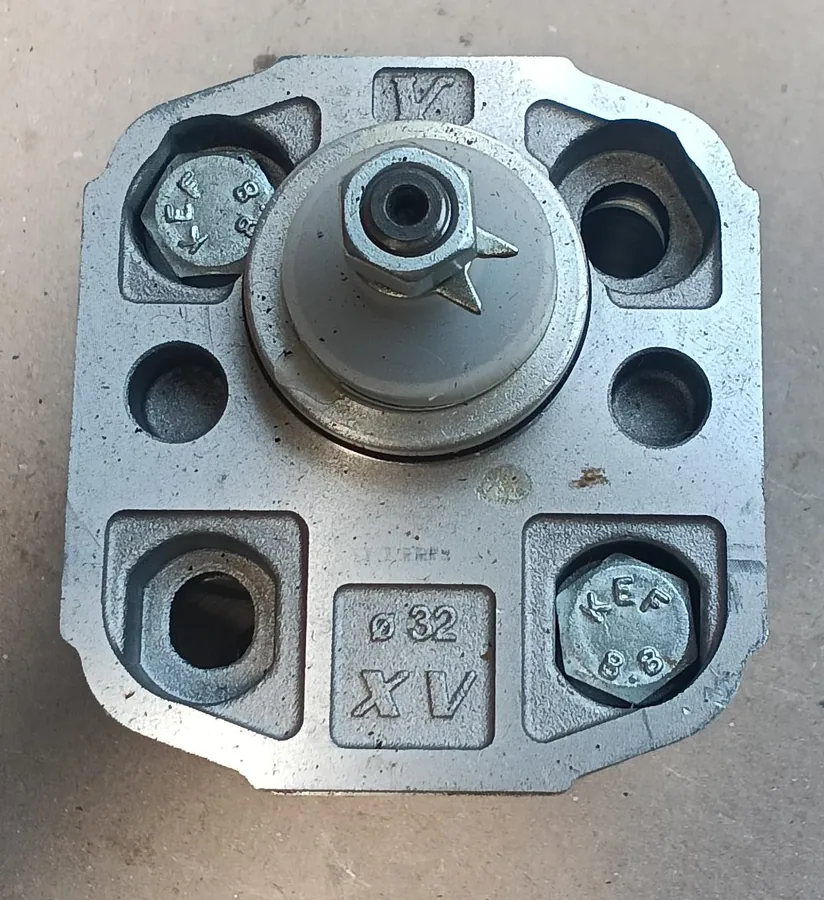

- Ø32 BH/D flange face and XV series casting — close-up

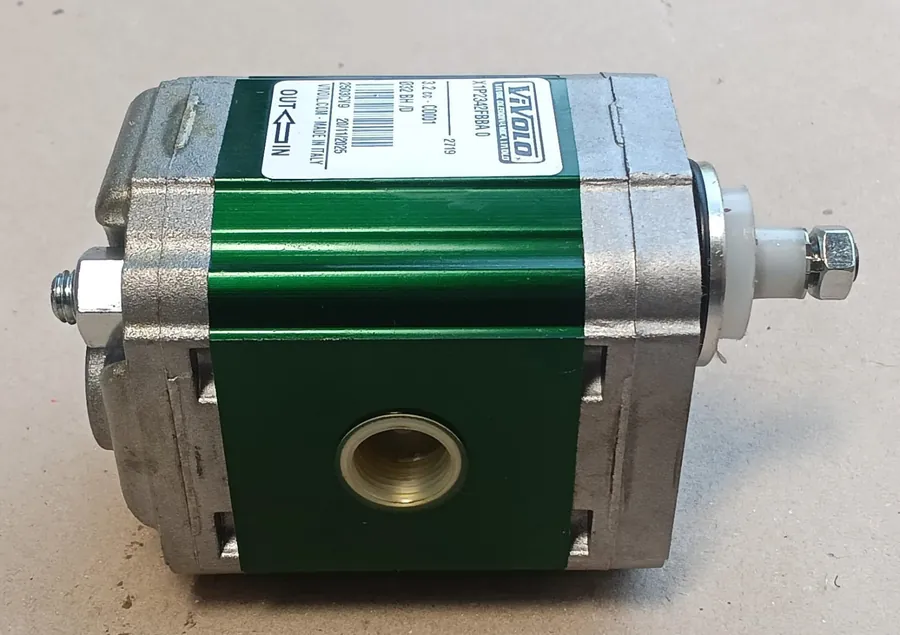

- Port orientation (OUT ← IN) and 3/8 BSPP port threads

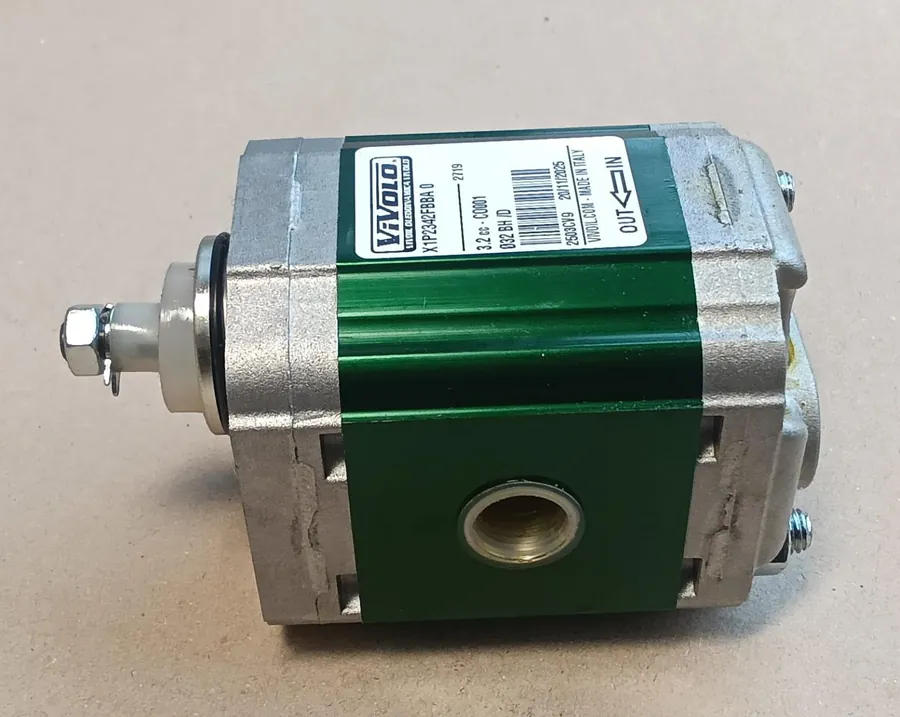

- CF002 milled shank Ø10mm — shaft condition inspection
- Overall housing and seal condition — fresh stock verified
About This Pump
The Vivoil X1P2342FBBA hydraulic gear pump, made in Italy by Vivoil Oleodinamica Vivolo s.r.l. (Budrio, Bologna), is available in India from Pioneer Mitra Engineering Company, Delhi. This Series XV, Group 1 pump delivers 3.12 cc per revolution at up to 250 bar working pressure — with a Ø32 BH/D flange, 3/8 BSPP ports, and CF002 milled shank shaft. Data sourced from official Vivoil XV-1P datasheet (XP119).
Pioneer Mitra's stock (Batch 2719, manufactured November 2025) is held at our Delhi inventory and dispatched with a pre-dispatch WhatsApp video on every confirmed order.
Why Italian Hydraulic Pumps Like Vivoil Matter
- Precision tolerancing: Italian manufacturing holds tighter gear mesh clearances, reducing internal leakage and improving volumetric efficiency — critical at 3.12 cc/rev displacement.
- Patented design: The Vivoil XV series carries 3 international patents for body construction — aluminium alloy housing engineered to hold 250 bar (P1) working pressure reliably.
- Consistent datasheet accuracy: Published specs (weight 1.090 kg, dim A 85.5 mm, port 3/8 BSPP) match actual physical units — unlike economy alternatives with approximate or unverified data.
- Long service life: Internal surface finish quality translates to lower heat generation and extended bearing and seal life under continuous operation.
Part Number Cross Reference
X1P2342FBBA 0
X1P2342FBBA
XV-1P/3.2 right rotation
Displacement code: 23
Flange code: 42
X1P2342FBZC (variant)
Related Products & Pages
Frequently Asked Questions
Is Vivoil X1P2342FBBA genuinely Made in Italy? ⌄
Yes. Manufactured by Vivoil Oleodinamica Vivolo s.r.l., Budrio (Bologna), Italy. Each unit carries the official Vivoil label and "VIVOIL.COM — MADE IN ITALY" certification. Pioneer Mitra's stock (Batch 2719) was manufactured on 20/11/2025 — see the live video above.
What is the maximum pressure of Vivoil X1P2342FBBA? ⌄
Per the official Vivoil XV-1P datasheet (XP119): P1 (max working pressure) = 250 bar. P3 (max peak pressure) = 300 bar. These are confirmed values for the XV-1P/3.2 displacement variant — not estimates.
What are the exact dimensions and weight? ⌄
Per official Vivoil XV-1P/3.2 datasheet: Weight 1.090 kg. Length A = 85.5 mm. Dimension B = 40.5 mm. Dimension C = 73.5 mm. Port threads: 3/8 BSPP IN and OUT. Shaft: CF002 milled shank Ø10 mm, thickness 5 mm. Admissible shaft torque: 13.8 Nm.
What is the market price in India? ⌄
Market pricing available on request. Pioneer Mitra offers single-unit pricing, bulk OEM pricing, and export FOB pricing based on destination and quantity. WhatsApp +91-9672055759 — response within 15 minutes during business hours.
Is export from India available? Which countries? ⌄
Yes. Pioneer Mitra (IEC: BJDPB6241D) dispatches from Delhi via air freight within 24–48 hrs of payment. We export to UAE, Kenya, Nigeria, Saudi Arabia, Tanzania, Australia, and 25+ more. Form M and customs documentation support for West Africa buyers.
Is this compatible with my machine? ⌄
The X1P2342FBBA is a Group 1 pump with Ø32 BH/D flange and 3/8 BSPP ports. It suits pilot, charge, and auxiliary circuits on equipment specifying Vivoil XV Group 1 pumps. Share your machine make/model on WhatsApp for compatibility confirmation before ordering.
Last physically verified: 14 May 2026 — Pioneer Mitra Engineering Company, Delhi
