Transit Mixer Chute Jack Assembly Supplier in India
Heavy-duty chute jack assembly for concrete transit mixers — smooth chute adjustment, corrosion-resistant finish, ready for fleet & RMC plant supply.
- Ready stock — New Delhi warehouse
- PAN India + export RFQ
- Bulk supply for dealers & plants
Product Video — Transit Mixer Chute Jack
Original stock video — confirm quantity and mixer model on WhatsApp before dispatch.
Product Overview
The Transit Mixer Chute Jack Assembly (also searched as Transit Mixer Jack, Chute Jack Assembly or chute lifting jack) is used to raise, lower and support the discharge chute on concrete transit mixer trucks. During RMC delivery, the chute must hold position at different heights and angles — a worn jack causes chute sag, difficult pouring and safety risk on site.
This assembly uses a manual crank driving a heavy screw mechanism inside a robust steel housing, typically finished in industrial yellow for corrosion resistance on outdoor construction equipment. Quality builds reference SKF bearings, mild steel chassis and smooth thread operation — common market spec cites approximately 520 mm linear travel (confirm against your old unit before ordering).

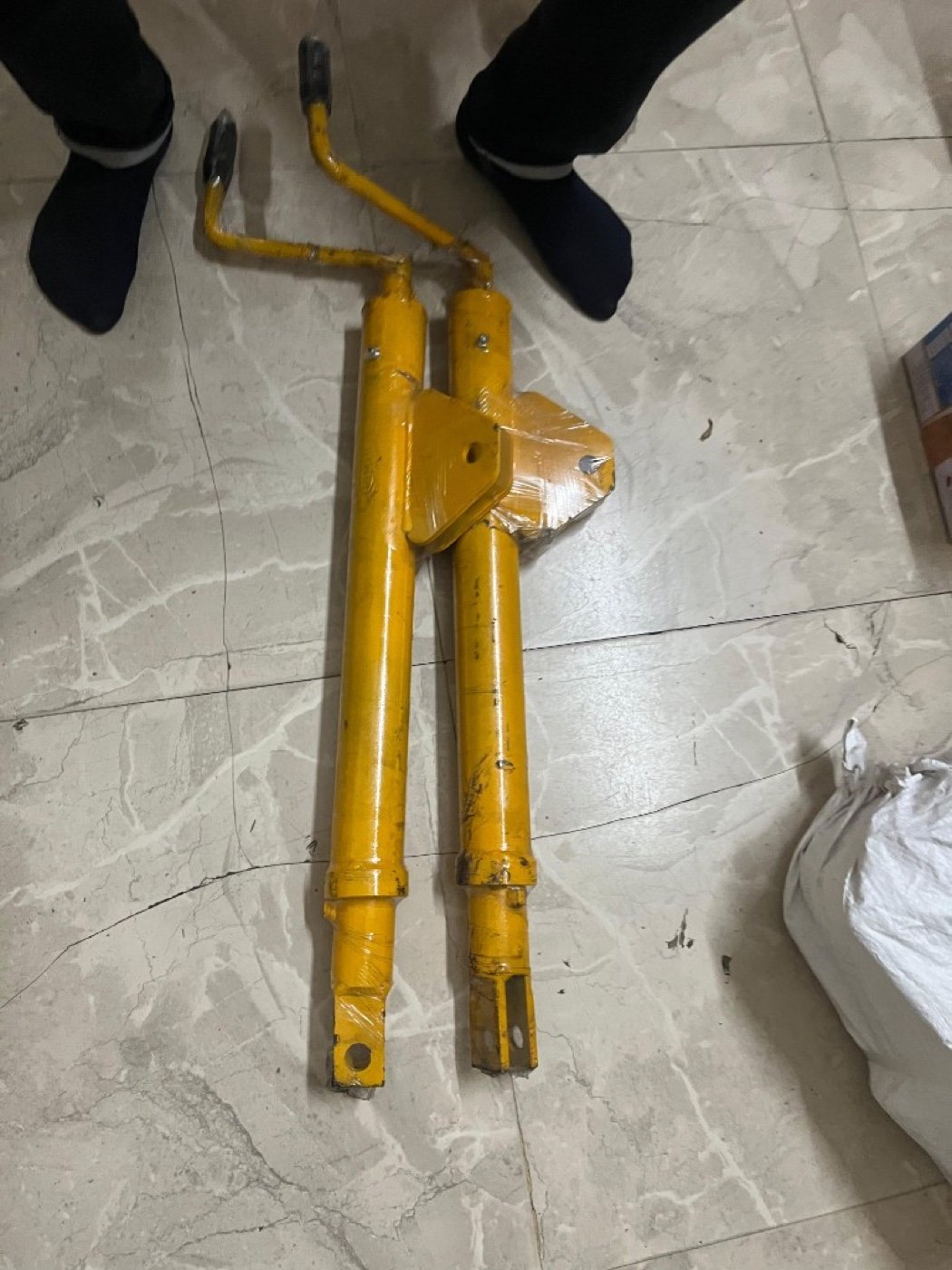

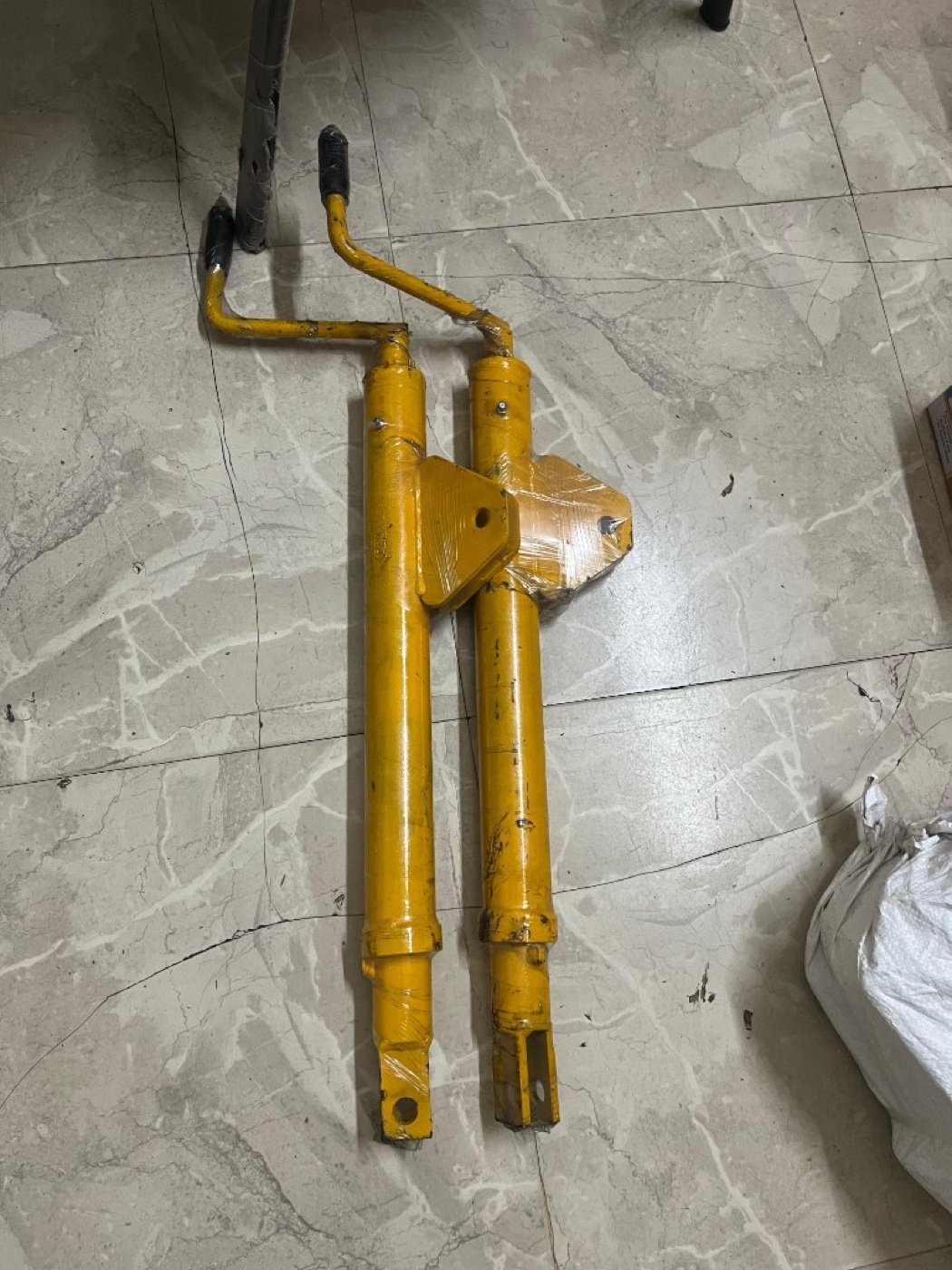

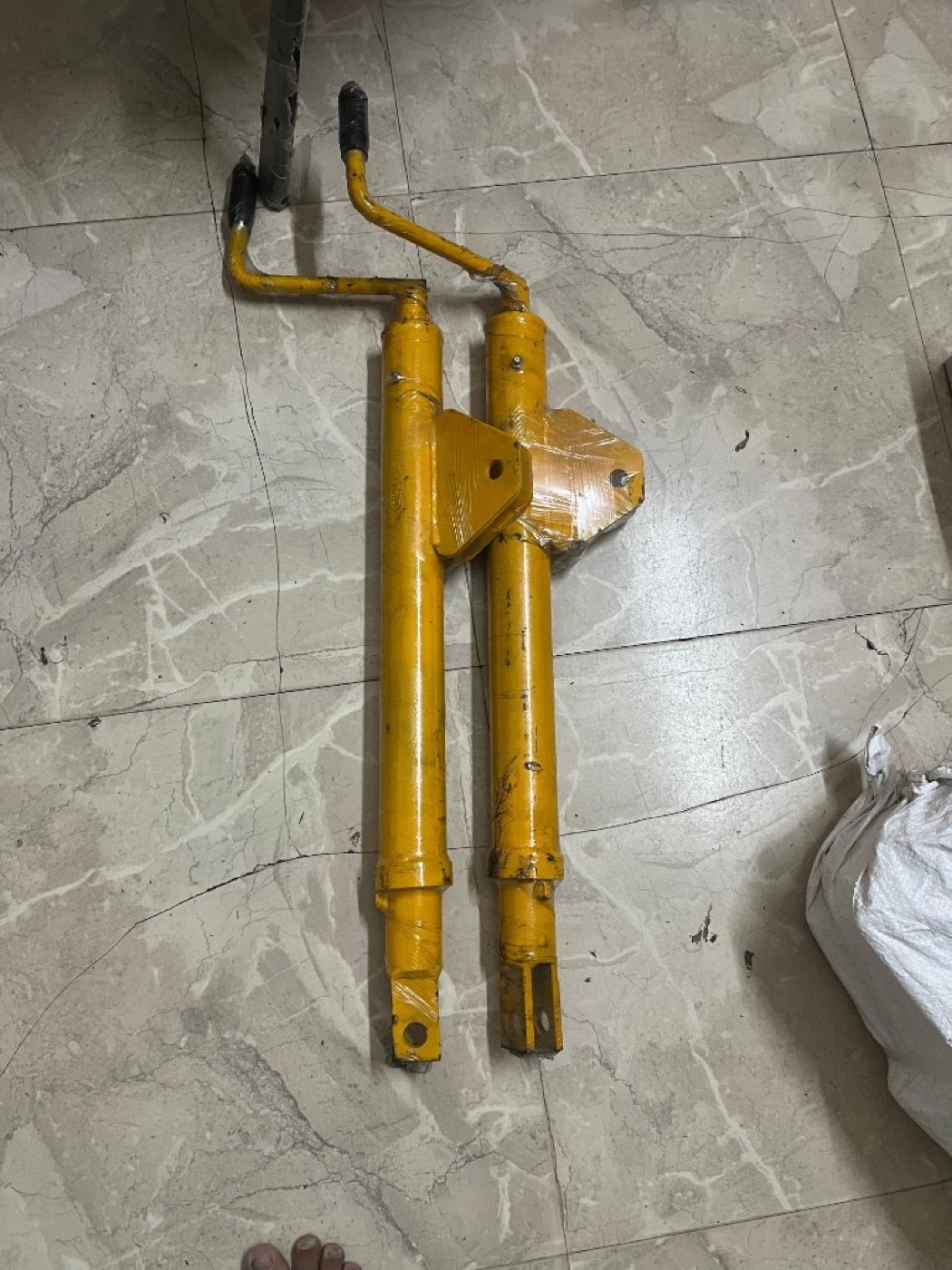

Stock shown is a dual chute jack pair (two crank-operated units) — typical for transit mixer rear chute support. Google results are dominated by IndiaMART listings with catalogue screenshots; this page uses original Pioneer Mitra warehouse photos and video for export buyers and fleet maintenance teams.
Key Features
Mild steel chassis for transit mixer duty
Crank-operated screw jack mechanism
Industrial yellow paint system
Standard mounting on chute support point
Quality bearings & thread design
Fleet & RMC plant proven application
| Specification | Typical industry reference |
|---|---|
| Type | Chute jack / chute support assembly |
| Operation | Manual hand crank |
| Travel length | ~520 mm (verify old part) |
| Construction | Mild steel robust chassis |
| Bearings | SKF or equivalent (quality builds) |
| Mixer capacity | Suits 6 m³ class transit mixers (confirm fitment) |
Applications
| Sector | Use |
|---|---|
| Transit mixer trucks | Discharge chute height & angle control |
| Concrete mixer vehicles | RMC delivery fleet maintenance |
| Ready mix concrete plants | Fleet spare inventory |
| Construction equipment yards | Workshop overhaul & replacement |
Available Spare Parts (Related)
This page — complete unit
RFQ on WhatsApp
Match to mixer model
Hoses, clamps, wear parts
Why Choose Pioneer Mitra
Fitment support before dispatch
FOB New Delhi · 24h response
Dealers & fleet programs
Courier + air export
How the Chute Jack Works
- Jack mounts at the chute support bracket on the transit mixer rear structure.
- Operator turns the hand crank — internal screw extends or retracts the jack.
- Chute rises or lowers to pour height for slab, column or pump line feeding.
- Lock position during pour; inspect thread wear and bearing play at service intervals.
