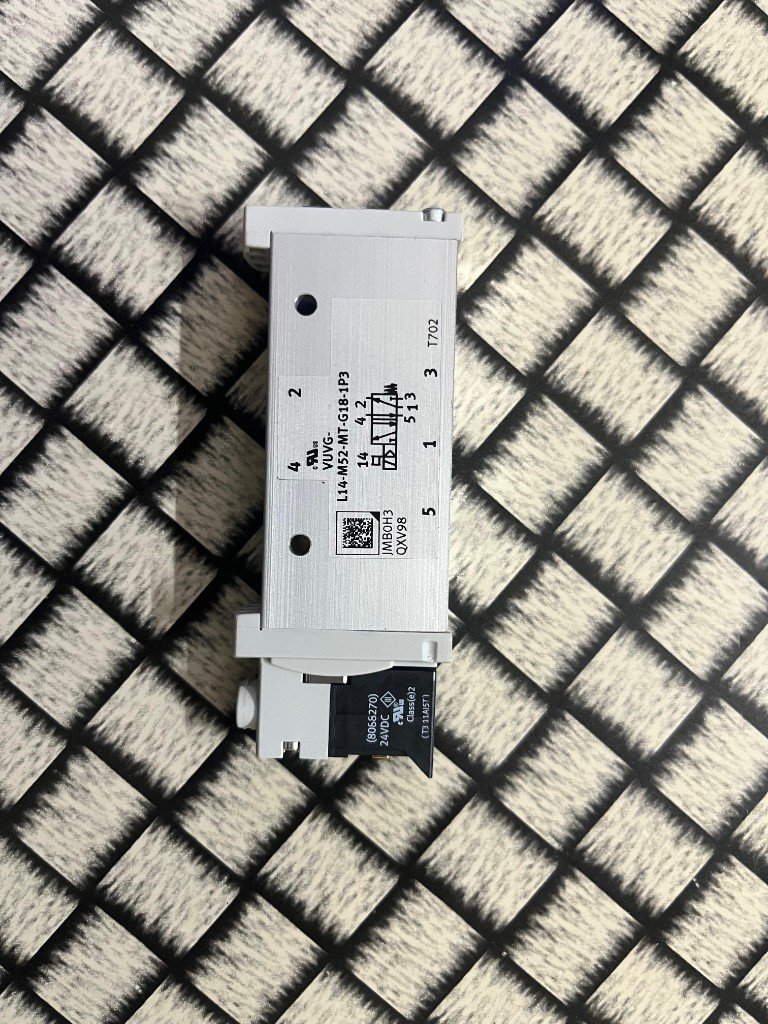

Caption: Festo VUVG-L14-M52-MT-G18-1P3 — 5/2 monostable · label & ports verified
📸 Real Mori Gate stock — original FESTO sealed packs · label VUVG-L14-M52-MT-G18-1P3 · 24V DC on coil · not marketplace renders
▶ Product Video (YouTube Short)
Festo VUVG-L14-M52-MT-G18-1P3 Solenoid Valve
₹5,259 Ex Delhi · Supplier & Exporter · 5/2 · G1/8
Festo order code: 574371
Get best price for Festo VUVG-L14-M52-MT-G18-1P3 from Pioneer Mitra Engineering Company, Mori Gate, New Delhi — genuine pneumatic components, GST invoice, bulk supply & export FOB India.
🕐 Last price update:
WhatsApp for best rate — bulk MOQ, project BOM & export FOB often lower than single-piece reference.
T&C apply — ₹5,259 Ex Delhi per unit (reference as on date above). GST, freight & export extra. Confirm 574371 label before order. Not authorised Festo dealer.

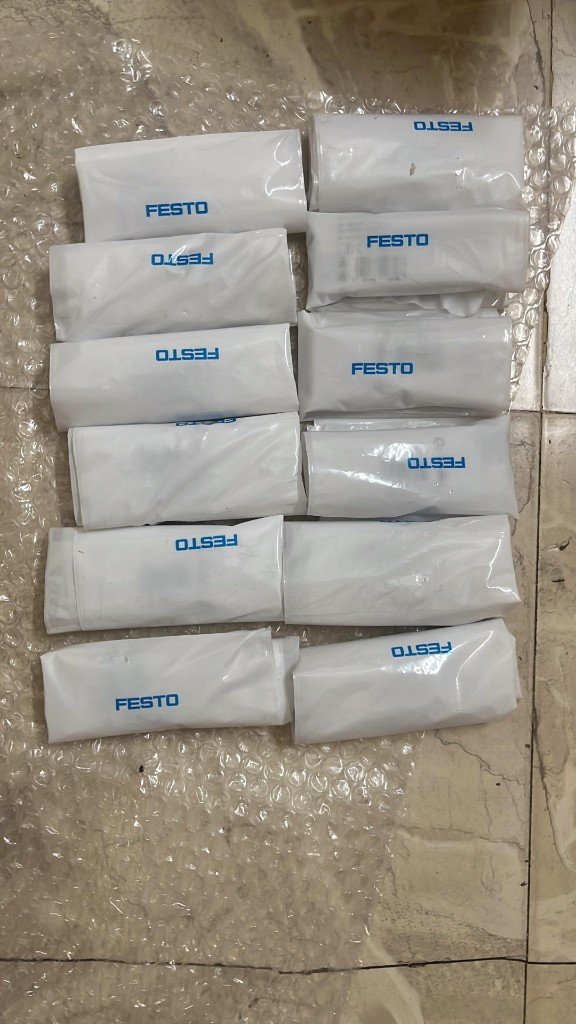

- Sealed Festo retail packaging (warehouse photo)
- Label + 24V DC coil marking verification
- Pan-India courier · worldwide export packing
Need Festo VUVG-L14-M52-MT-G18-1P3? Line down or project BOM?
- Same-day quote · bulk MOQ
- Export FOB Delhi · IEC BJDPB6241D
- Technical part-number check
What is VUVG-L14-M52-MT-G18-1P3?
Festo VUVG-L14-M52-MT-G18-1P3 is a compact air solenoid valve from the VUVG series — 5/2-way, monostable, electrically actuated, with G1/8 pneumatic ports. Festo order code 574371. It is widely used in industrial automation, packaging machinery, pneumatic control panels and process equipment where reliable switching and high flow in a small footprint matter.
Buyers searching Festo VUVG-L14-M52-MT-G18-1P3 price India, 574371 solenoid valve stock, or Festo pneumatic valve supplier Delhi need fast confirmation of the correct type code, port size and voltage — our photos show the top label (ports 1–5), 24V DC coil marking and sealed Festo packs from Delhi warehouse.
Technical specifications (from Festo datasheet)
| Festo order code | 574371 |
|---|---|
| Type / part number | VUVG-L14-M52-MT-G18-1P3 |
| Valve function | 5/2-way, monostable |
| Actuation | Electric · pilot actuated · internal pilot air |
| Operating voltage | 24 V DC (coil ~1.0 W per datasheet) |
| Pneumatic ports 1, 2, 4, 5 | G1/8 |
| Nominal flow rate | 700–780 l/min (standard nominal) |
| Operating pressure | 0.3–0.8 MPa (3–8 bar) |
| Switching time on / off | 13 ms / 40 ms |
| Protection | IP40 · IP65 with plug socket |
| Ambient / media temperature | -5 °C … +60 °C |
| Product weight | 70 g |
| Valve size / nominal size | 14 mm / 5.6 mm |
| Design | Piston slide valve · soft sealing |
| Mounting | Manifold rail or through-hole |
| Medium | Compressed air per ISO 8573-1:2010 [7:4:4] |
| Approvals (datasheet) | c UL us Recognized · CE · UKCA · RoHS |
| Price (Ex Delhi) | ₹5,259 — last update 1 June 2026 |
Always cross-check with your machine manual. SERP listings sometimes show VUVG-L18 variants — different part number and flow.
Features
Applications
Pneumatic systems, packaging machines, pick-and-place units, food & beverage lines, automotive assembly, textile and pharmaceutical automation, and general manufacturing equipment use VUVG-L14 solenoid valves for directional control of cylinders and actuators.
