Welding Machine PCB Board & IGBT Card Supplier India
40N120 IGBT Card • 3878 MOSFET Card • 200FZY-D Axial Fan • Inverter PCB Board • Control Card
Toroidal Inductors • Rocker Switches • Driver Cards • Complete Electronic Spare Parts
Technical Verification Before Dispatch — GST Invoice — Courier Delivery Across India
Actual Stock — Delhi Warehouse

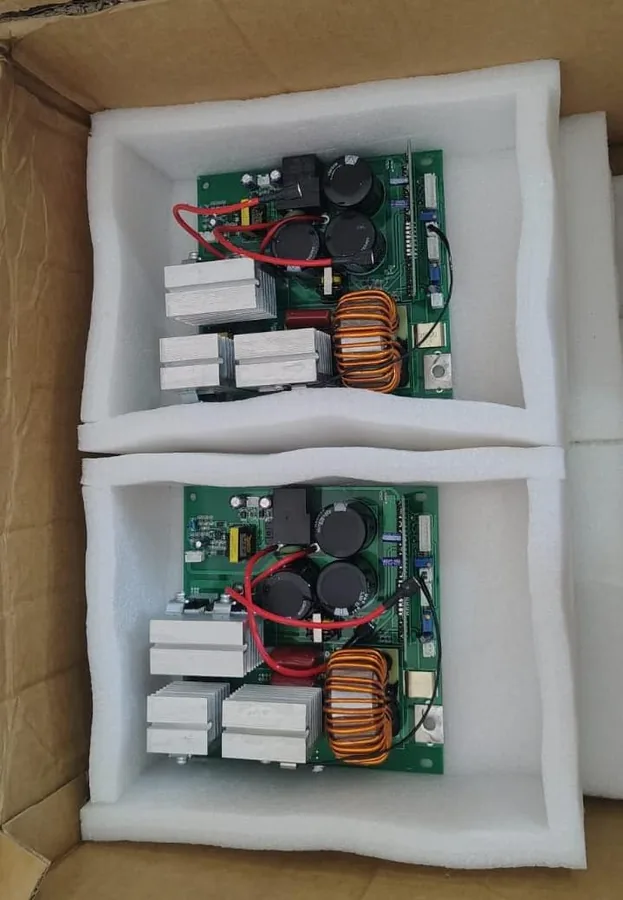

Inverter welding machine PCB boards — foam packed, bulk stock

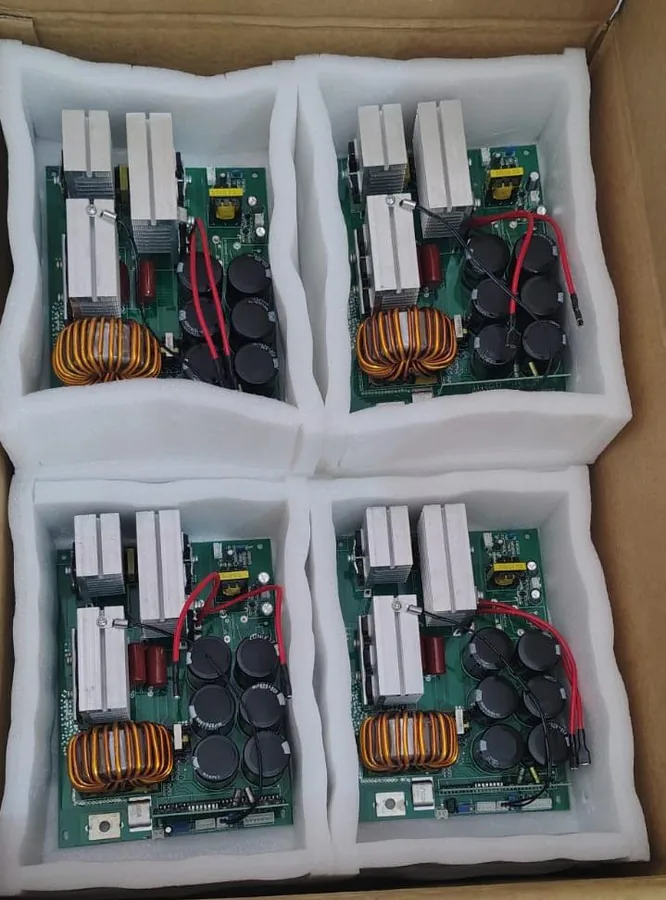

Welding PCB boards — 4-unit foam packed, ready to dispatch

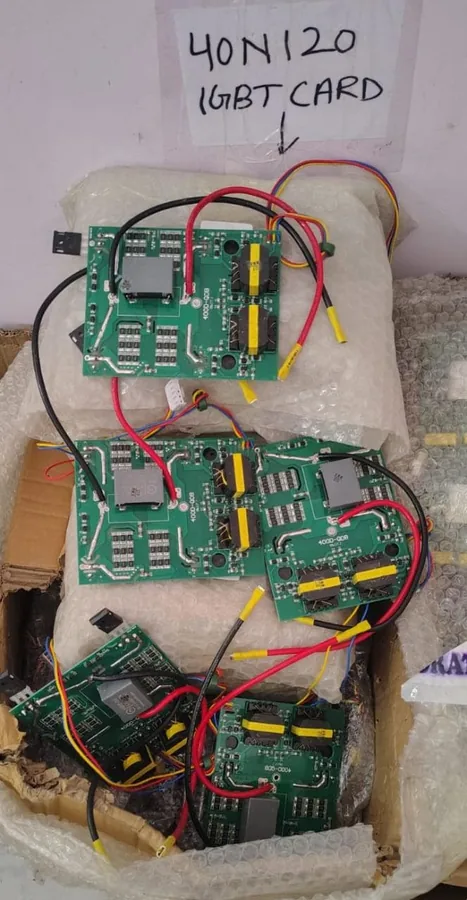

40N120 IGBT cards — actual stock, handwritten identification
3878 MOSFET cards — actual warehouse stock

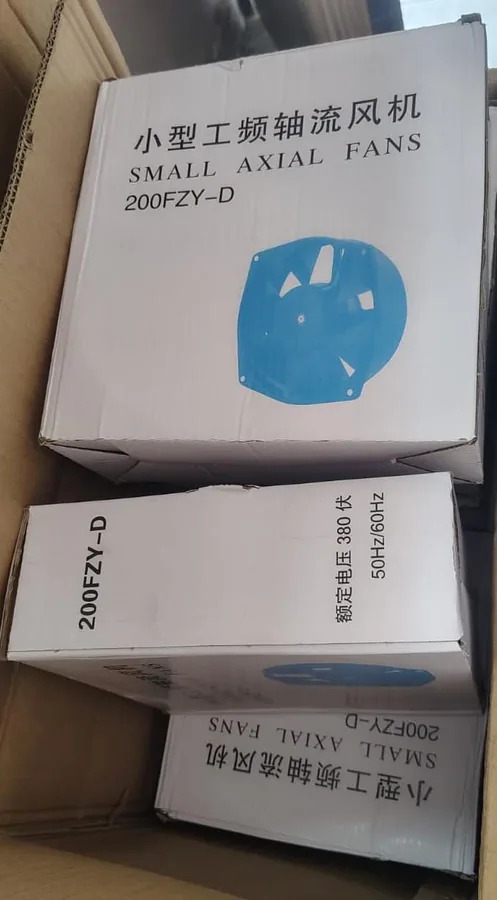

200FZY-D AC Axial Cooling Fans — boxed, bulk stock
Toroidal inductors / choke coils — welding machine components
🔍 Search by Part, Fault or Machine Type
Parts Available — Model & Stock
| Part / Model | Type | Application | Stock | Enquire |
|---|---|---|---|---|
| 40N120 | IGBT Driver Card | Inverter welding machines — power switching | ● Available | WhatsApp → |
| 3878 | MOSFET Driver Card | MMA/stick welding machines | ● Available | WhatsApp → |
| 200FZY-D | AC Axial Cooling Fan | Welding machines, control panels, inverters — 380V 50/60Hz | ● Available | WhatsApp → |
| Inverter PCB | Main Power PCB Board | Inverter welding machines — multiple models | ● Available | WhatsApp → |
| Control PCB | Control/Display Card | Welding machine control, current adjustment, protection | ● Available | WhatsApp → |
| Toroidal Inductor | Choke / Inductor Coil | Welding machine filter choke — output smoothing | ● Available | WhatsApp → |
| Rocker Switch | ON/OFF Switch | Welding machine power switch — red & yellow variants | ● Available | WhatsApp → |
Key Products — Technical Details
40N120 IGBT Driver Card
IGBT driver card for inverter welding machines. Controls the high-frequency switching of the IGBT power module. Most commonly replaced component after IGBT blast failure.
| Type | IGBT driver PCB card |
| Application | Inverter welding machines |
| Compatibility | Verify by board photo |
| Stock | Available — Delhi |
3878 MOSFET Driver Card
MOSFET-based driver board for MMA welding machines. Multi-MOSFET configuration for current handling. Symptoms of failure: no arc output, machine tripping, erratic current.
| Type | MOSFET driver PCB card |
| Application | MMA inverter welding machines |
| Compatibility | Verify by board photo |
| Stock | Available — Delhi |
200FZY-D Small Axial Fan
Industrial axial cooling fan used in welding machines, control panels and inverters. Failure causes thermal protection shutdown and machine overheating. Direct replacement part.
| Model | 200FZY-D |
| Type | Small axial cooling fan |
| Voltage | 380V / 50-60Hz |
| Stock | Available — Delhi |
Common Welding Machine Faults — Causes & Parts
⚠️ Welding Machine Dead — No Output
Machine powers on but produces no welding arc, or machine completely dead on switch-on. Most common fault in inverter welding machines after heavy use.
Root causes: Blown IGBT card (sudden overload or short circuit), burned MOSFET driver board, failed main PCB capacitor, or damaged rectifier diode bridge.
⚠️ Welding Machine Overheating / Tripping
Machine works for 2–3 minutes then shuts down, or thermal protection light activates. Common in hot environments and with blocked ventilation.
Root causes: Cooling fan failed (200FZY-D), dust-blocked heatsink, weak fan not providing adequate airflow, or thermal sensor issue.
⚠️ IGBT Blast — Sudden Failure
Popping sound, burning smell, machine dead instantly. Visible burn marks on IGBT component. Common in machines running near max capacity in dusty workshops.
Root causes: Overcurrent, short circuit in welding cable, moisture ingress, inadequate cooling, or low input voltage causing compensation overcurrent.
⚠️ Unstable Arc / Erratic Current
Welding arc is inconsistent, current fluctuates during welding, or arc breaks frequently. Welding quality affected — porosity and uneven bead.
Root causes: Aging or damaged control PCB, weak capacitors on PCB, loose connector on control card, or voltage regulator issue.
⚠️ Machine Not Striking Arc (But Powers On)
Power LED on, fan running, but no arc on electrode contact. Sometimes a clicking relay sound is heard.
Root causes: Failed IGBT gate drive signal, open circuit on driver card output, relay failure, or main power board fault.
⚠️ Fan Not Running
Welding machine fan completely stopped or running slowly. Machine heats up quickly. Fan visible through ventilation grille is stationary.
Root causes: Bearing seizure in fan motor, power supply issue to fan, or fan motor winding failure. Fan replacement is simple and often solves overheating.
Pan-India Delivery — Welding PCB Parts
| Delhi, UP, Haryana, Rajasthan | 1–2 working days |
| MP, Gujarat, Maharashtra, Chhattisgarh | 2–3 working days |
| West Bengal, Odisha, Bihar, Jharkhand | 3–4 working days |
| Tamil Nadu, Karnataka, Andhra, Kerala | 3–5 working days |
| Northeast States | 4–6 working days |
| Same-Day Dispatch | Orders confirmed before 2 PM |
| GST Invoice | Every order — 07BJDPB6241D1ZS |
| Technical Verification | Board photo matching before dispatch |
