Physical Multi-Angle Photo Validation Protocol
Remote procurement of industrial push button controls carries actuator colour, Harmony series part number and contact block pairing risk. Pioneer Mitra applies a structured verification protocol so international buyers can confirm push button identity before export quotation:
- Packaging label capture — Harmony series push button retail bag label with XB5AA31N or XB5AA42N part number, Pushbutton Spring Return Flush description, Made in India and Schneider Electric India Pvt Ltd Hyderabad factory stamp photographed on warehouse stock.

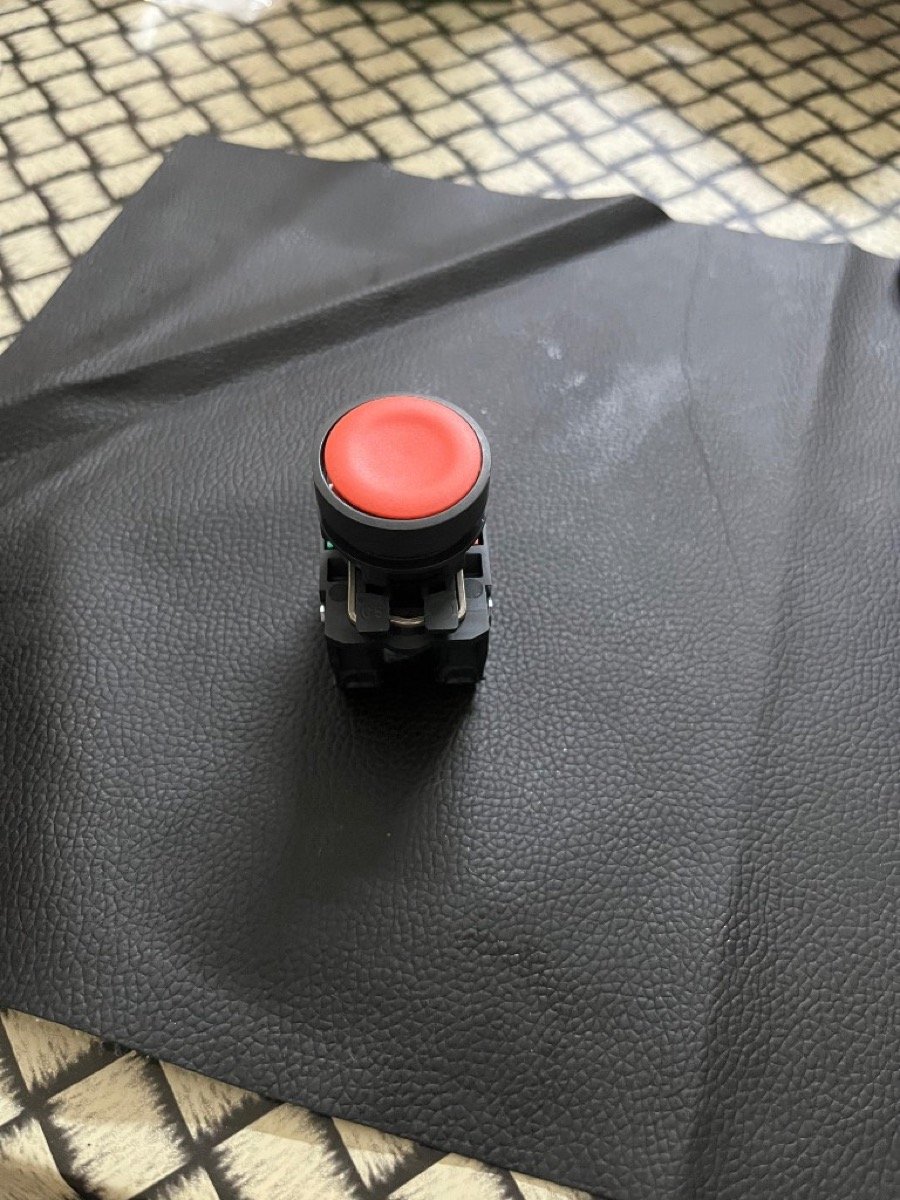

- Actuator colour and profile — green (XB5AA31N) or red (XB5AA42N) 22mm flush spring-return button head documented at source.

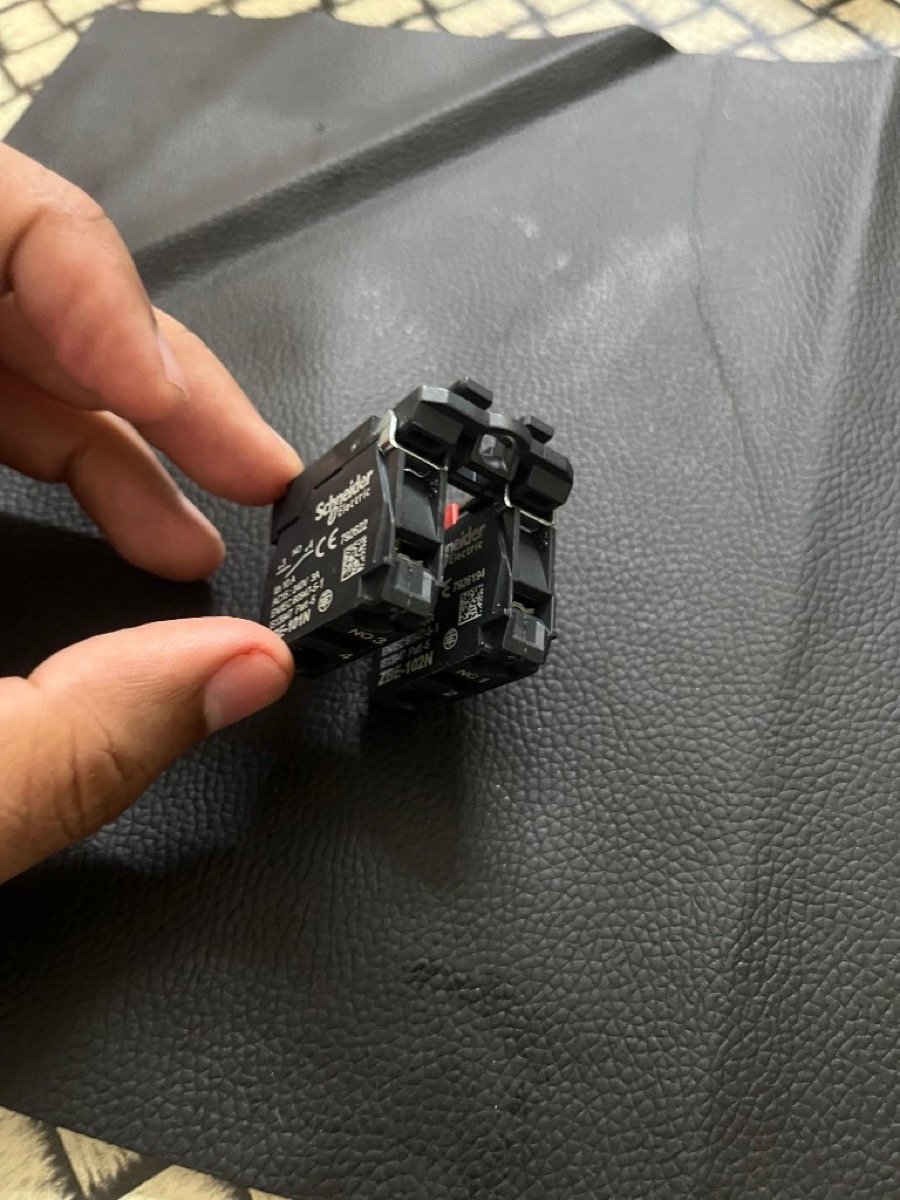

- Contact block part numbers — ZBE-101N (NO, 10A, AC15 240V 3A) and ZBE-102N (NC, 10A, AC15 240V 3A) side labels with Schneider Electric branding photographed on modular contact blocks.

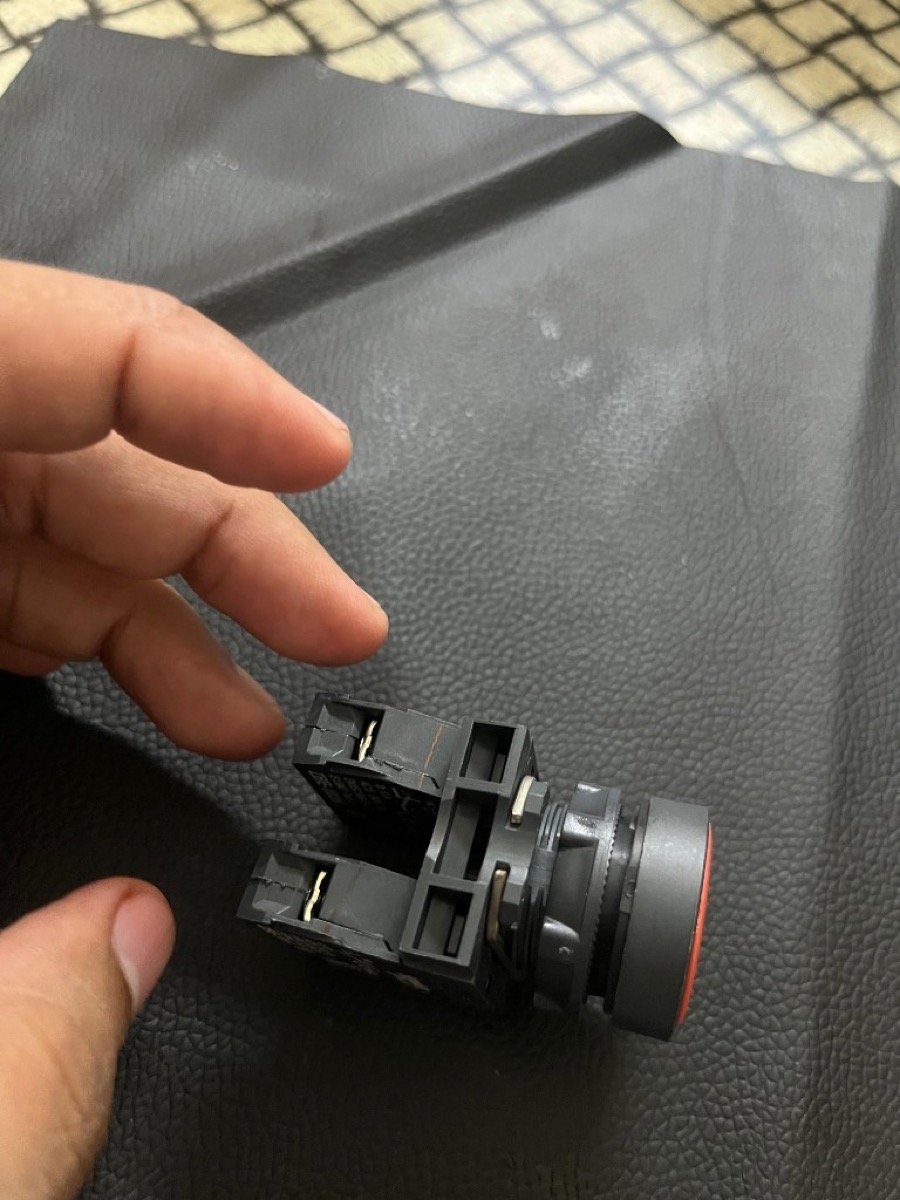

- Modular assembly geometry — mounting collar, contact block clip interface and terminal layout captured for cross-reference against your control panel cutout.
- WhatsApp confirmation — send part number XB5AA31N or XB5AA42N, required contact configuration (NO/NC), panel application and quantity; our India sourcing desk cross-matches before FOB quote.
Nameplate audit — PASS: Schneider Electric branding visible on XB5AA42N packaging label (Harmony, Made in India, May-2024, IS/IEC 60947-5-1) and ZBE-101N/ZBE-102N contact block labels on photographed warehouse batch — cross-reference identification only, not authorised Schneider Electric dealer status.
Product availability is physically verified through our India sourcing desk before export quotation.
FAQ — XB5AA42N Red Push Button
What is Schneider XB5AA42N?
XB5AA42N is a Schneider Electric cross-reference Harmony series 22mm spring return flush push button with red actuator — packaging label documents Harmony, Made in India, May-2024, IS/IEC 60947-5-1.
Which contact blocks fit XB5AA42N?
ZBE-101N — normally open (NO), Ith 10A, AC15 240V 3A.
ZBE-102N — normally closed (NC), same rating. Stack for NO+NC combinations.

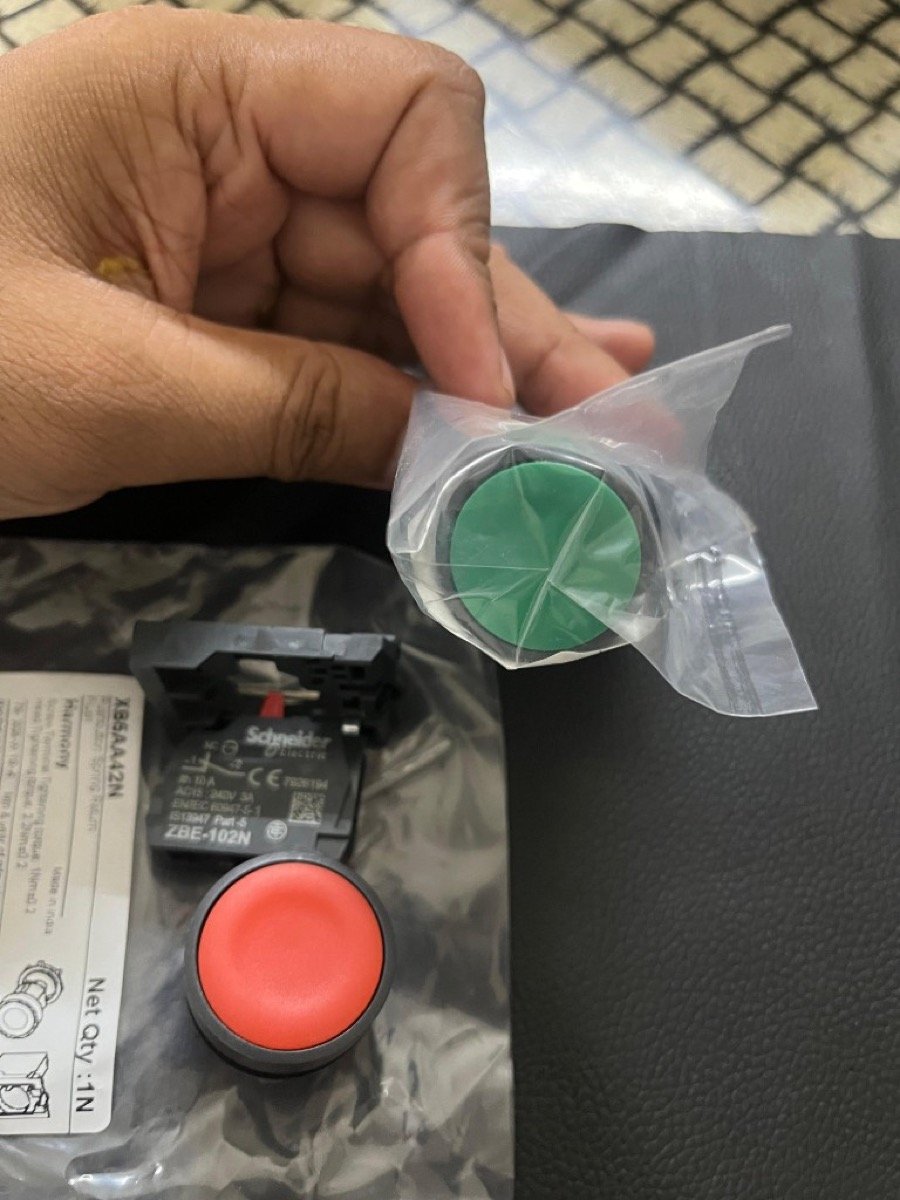

What is the difference between XB5AA42N (red) and XB5AA31N (green)?
XB5AA42N has a red actuator;
XB5AA31N has a green actuator. Same ZBE compatibility.
Can I order XB5AA42N push buttons in bulk for export projects?
Yes — consolidate with green XB5AA31N and ZBE contact blocks on one FOB India proforma.
How do I verify compatibility before ordering?
Send part number XB5AA42N, panel application, required contact configuration and quantity.
Is this a genuine Schneider Electric OEM push button?
We supply cross-reference compatible units — we do not claim authorised Schneider Electric dealer status.
Do you show warehouse photos and video for XB5AA42N?
Yes — six warehouse photos and YouTube warehouse verification short in the hero.
Export lead time and incoterms?
FOB New Delhi / ICD — lead time confirmed at quotation.
Are you affiliated with Schneider Electric SE?
No. Pioneer Mitra is an independent export supplier (IEC BJDPB6241D).
